Built to Order Fayette MFG. Trailer 2,200 lb. Axle Beam Only -Straight

Built to Order Fayette MFG. Trailer 2,200 lb. Axle Beam Only -Straight



Alternative Views:


Our Price: $153.58

Price with Selected Options: $153.58


Product Code: FS22XXXX-Z


Custom Hubface (Ex. 85.25")*:


Custom Spring Center (Ex. 75.50")*:


Spring Seat Orientation*:
Bottom of axle
Top of axle

Spring Seats Loose -No Rating:
Axle will NOT be rated

Camber:
Camber
No Camber

Add on:


Axle Build Processing Time*:
Rush -24 hour build time M-F * Note: Shipping time not included [Add $150.00]
Standard 1-3 weeks

No Return Acknowledgement*:
All Trailer Axles are custom built . Please double check all measurements and options before summiting . By checking this box you are acknowledging that you understand that custom axles can not be returned and that all measurements and options are correct.

Qty:
Description

Complete straight 2,200 lb. replacement axle beam built to your exact specifications
Beam includes : Axle tube, Axle Seats and axle spindles.

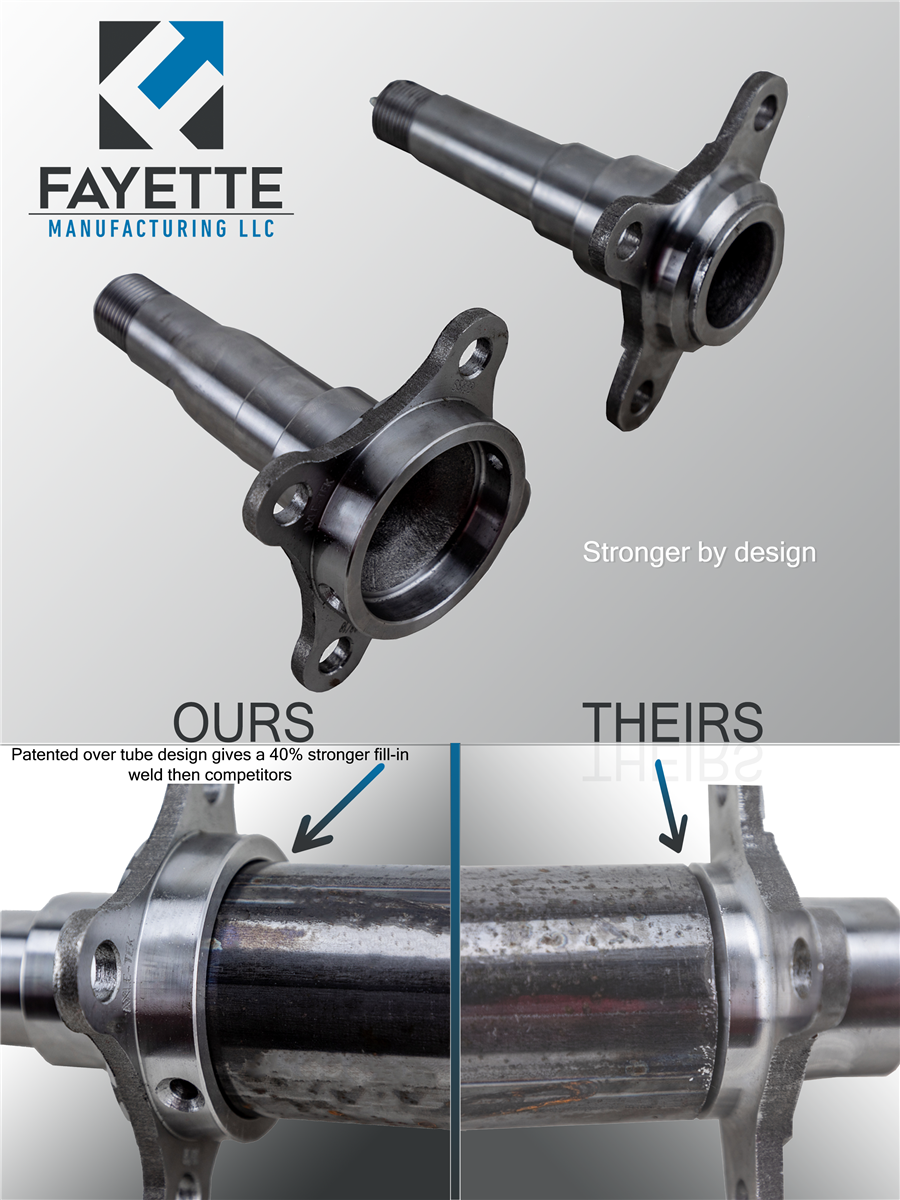

Spindles are designed with a patented over tube design which allows for a 40% stronger weld
Axle Beam is cambered to precision
Lubrication: Easy lube spindles with grease zerk
Made in the USA

Axle Tube: 1-3/4" outside diameter -.220" medium wall tubing

Spindle Size: #BT16 with grease zerk

Inside components:(NOT Included Spindle only )
Bearings:
Inner: L44649
Outer: L44649
Races:
Inner: L44610
Outer: L44610

Grease seal: Part # 10-60 1.50" ID x 1.987" OD (NOT Included)
Main Specs:
Construction: Steel
Finish : Sherwin Williams High Gloss Paint
Manufacturer: Fayette Manufacturing LLC. Website: https://fayettemfg.com/
Axle Weight rating: 2,200 lb. capacity
Spindle Type : Straight

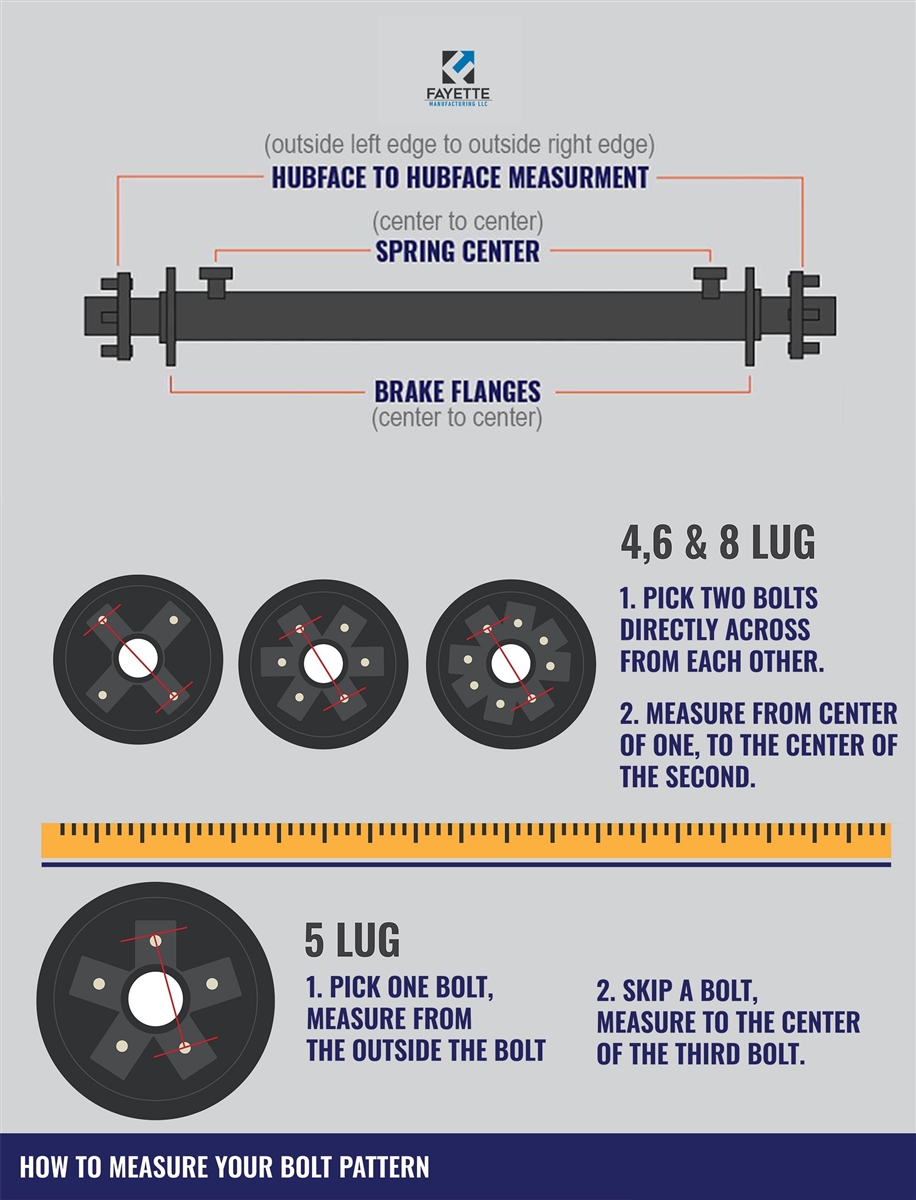

Hub Face to Hub face : Your specification in 1/4" increments (See measurement guide)
Spring Center to Spring Center : Your Specification in 1/4" increments (See measurement guide)
Warranty : Limited 5 Year Warranty
Made in the USA




Axle build process link https://fayettemfg.com/our-process/


Customer Focused Products!

24 hr. Fulfillment Times

If you rely heavily on your broken-down trailer, we offer a 24 hour build time on our axles! If required, shipping will take longer, but picking up your axles at our Lewisburg PA facility is also an option.
* 24 hour build times do not apply to weekends

5 Year Limited Warranty

Our Axles will be free from defects in material and workmanship for a period of 5 years. If you would encounter an issue, a simple call to our facility will be all that is required.

Aftermarket Interchangeability for
All Components

All of our bearings, brakes, and hub components are interchangeable with all other large axle brands! Even though we are happy to provide any replacements part you may need, any Dexter, Rockwell, Al-ko, or Lippert brand components are 100% interchangeable with ours.
