3,500 lb. Trailer Axle - Electric Brakes w/ 5 on 5" - 73" HF 58" SC

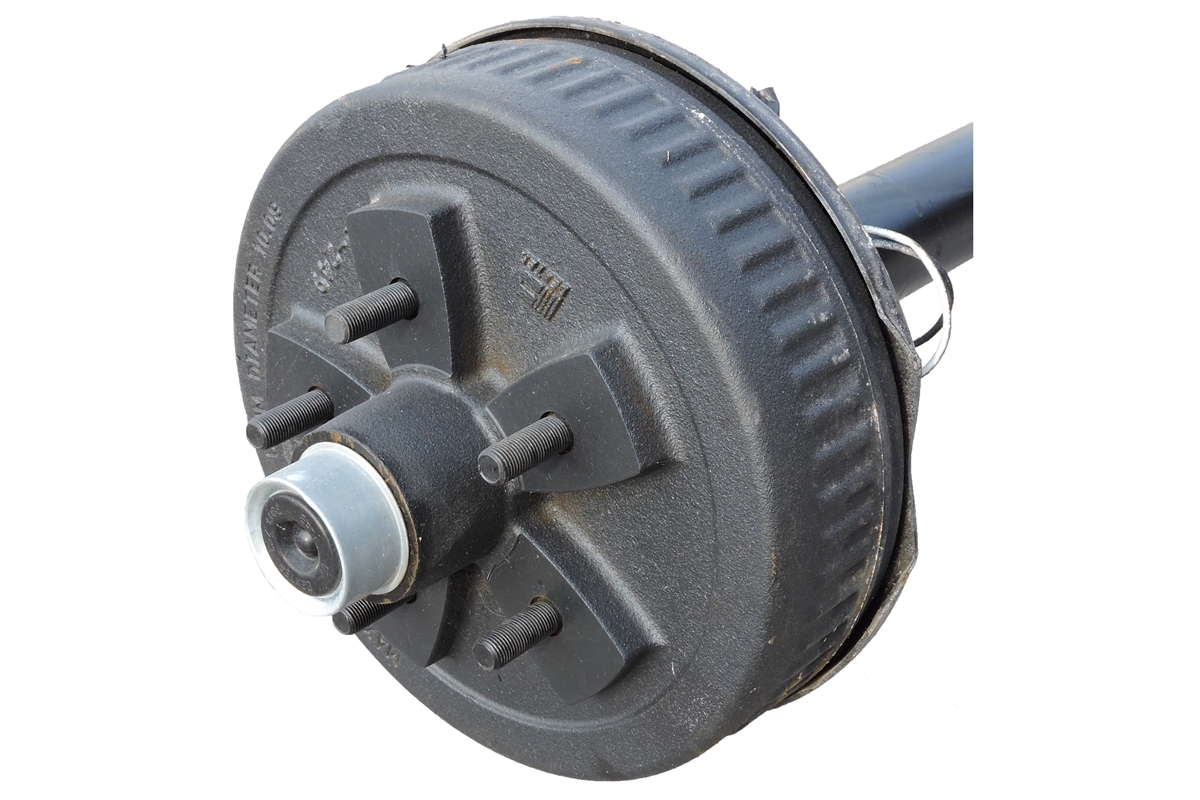

Complete 3,500 lb axle with electric brakes/drums w/ 5 stud on 5" spread



Alternative Views:


Our Price: $520.00

Stock Status:In Stock

Availability: Truck Freight Required. Please contact us for a shipping quote.
Product Code: 110156
Qty:

Description

Complete 3,500 lb axle with electric brakes/drums w/ 5 stud on 5" spread
This is a Straight axle with springs seats underneath the axle.
Weight rating: 3,500 lb. capacity
Commonly used on PJ 60" wide utility trailers.
Also Used PJ D5 dump trailers made after April 11,2014

Cambered Axle Tube
2-3/8" outside diameter

Spindle Size
#84 with grease zerk

Hub

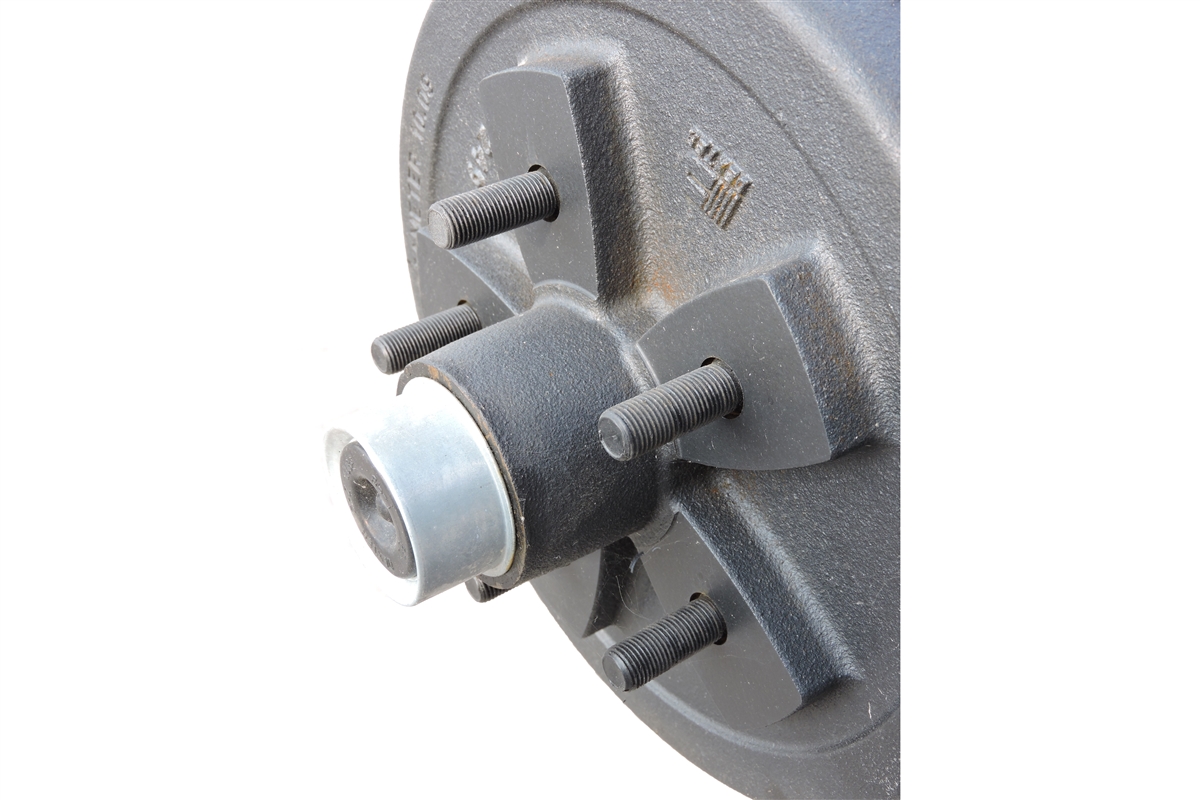

# 84556 # 008-249-07 Drum / Hub with 1/2" wheel studs

Inside components:
Brakes:
23-26 LH 10" x 2-1/4" electric brake
23-27 RH 10" x 2-1/4" electric brake

Bearings:
Inner: L68149
Outer: L44649

Races:
Inner: L68111
Outer: L44610

Grease seal: Part # 10-19 1.719" ID x 2.565" OD

Main Specs:
Weight rating: 3,500 lb. capacity
Hub Face to Hub face: 73"
Spring Center to Spring Center: 58"
Bolt Pattern: 5 lug on 5"
Wheel Stud Size: 1/2"
Brake Type: Electric Brakes 10" by 2-1/4"
Lubrication: Zerk-lube spindles with grease zerk.
