Dexter 10,000 lb. GD Axle Beam Only 74" HF 46" SC
Dexter 10,000 lb. General Duty Axle Beam Only 74" HF 46" SC



Alternative Views:
Our Price: $1,050.15

Stock Status:In Stock

Availability: Truck Freight Required. Please contact us for a shipping quote.
Product Code: DT10GD-DX7
Please Contact for shipping options Email : [email protected] or Phone : 717-473-4000

Description

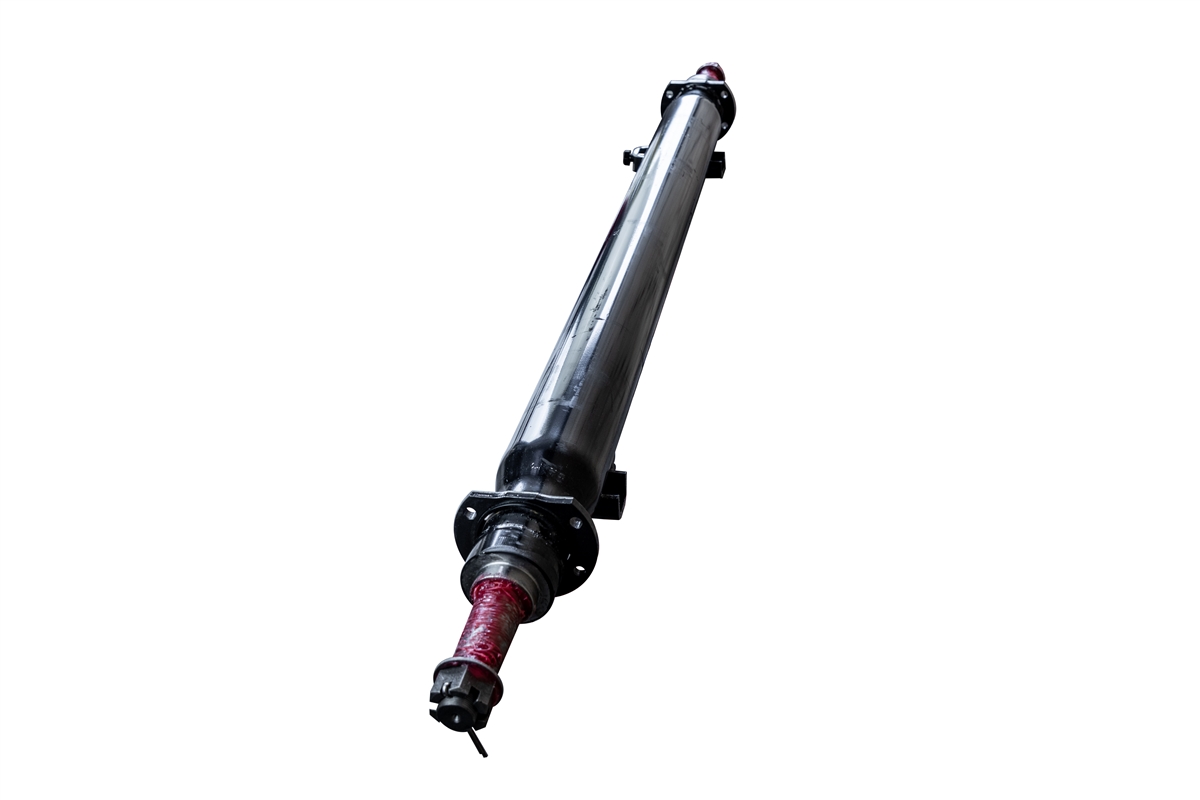

Complete Dexter 10,000 lb. General Duty Axle Beam only 74" hubface by 46" spring center
Includes the brake flange,washers,and spindle nuts

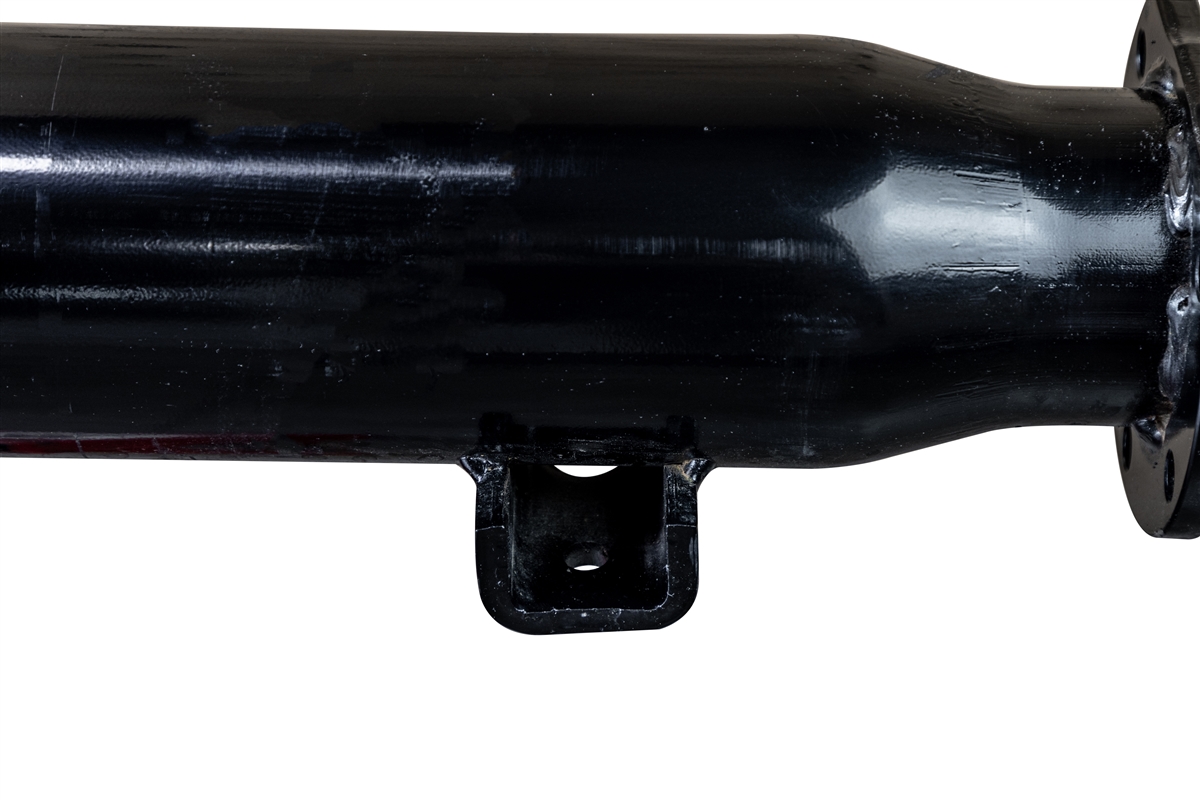

This is a straight axle with springs seats underneath the axle.
7 Bolt brake flange is designed for Dexter electric brake assemblies
Fits PJ Tandem Dual trailers (standard after 2015)

Main Specs :
Construction : Steel
Beam Finish : Painted
Weight rating: 10,000 lb. General Duty Capacity
Hub Face to Hub face: 74"
Spring Center to Spring Center: 46"
Bolt Pattern: 8 lug on 6.5"
Brake Type: for Electric Brakes (not included)
Lubrication: Oil Bath
Axle Manufacturer: Dexter Axle
Warranty : 5 Years Limited Warranty
Part number:DT10GD-DX7

Axle Tube:
5" outside diameter 0.250 wall tubing

Spindle Size:
General Duty with 7-bolt brake flange

Hub:(not included)
# 8-430-5 Drum / Hub with 5/8" wheel studs

Inside components:
Brakes: (not included)
23-450 LH 12-1/4" x 3-3/8" Forward adjusting electric brake
23-451 RH 12-1/4" x 3-3/8" Forward adjusting electric brake

Bearings: (not included)
Inner: 387A
Outer: 25580

Races: (not included)
Inner: 382A
Outer: 25520

Oil seal:(not included)
Part # 10-51 2.875" ID x 3.880" OD
