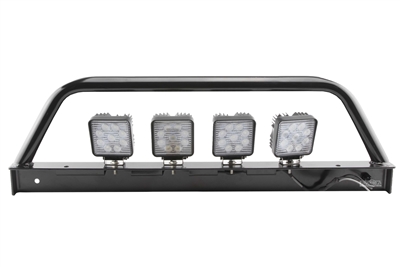

LED Loading Light Bar Assembly - 8,000 Lumens

LED Loading Light Bar Assembly - 8,000 Lumens

Alternative Views:

Our Price: $325.00

Stock Status:In Stock
Product Code: FM-40LB-SB


Prewired bolt-on LED loading light bar. This light bar is one of the most common accessories for our gooseneck trailers.
This light bar features (4) heavy duty 27 watt LED lights (2,000 lumens per light), and comes with a built in toggle switch.
Two lights are spot, and two are flood.
Professionally constructed, welded, and powder coated with a durable and smooth black finish.
Built tough for years of service. Only an estimated 30 minutes installation time.
Built and assembled in the USA.

We can get this light bar in any PJ Trailers color, and also other custom colors.
If you wish for a custom color, please call us with your order.

Also works as a great lighting solution for the worksite.

Fits on the channel cross-members between the risers on any PJ Gooseneck.
Includes four (4) square LED flood lights in a HD aluminum housing.
Lights can be adjusted vertically and horizontally
Lights are 4" square and are rated at 2,000 Lumens per light
2 spot and 2 flood lights.
Light Bar Paint finish: Black powder coat
1-1/2" mandrel bent round tube protective bar, lower frame built from 3/16" powder coated steel.
Pre-wired with generous 9ft of wiring for simple two-wire installation.
Toggle switch is mounted to the light bar, for easy access from the trailer deck or from the ground.
Lights are connected with heat shrink butt connectors for reliability and protection from the elements.
Connection points have a secondary rubber shrink tube added for superior weather protection.
Wiring for each light is protected by rubber coating and steel clamps.
Comes with a waterproof on/off toggle switch with a waterproof protective rubber boot.
Includes zinc plated hardware (nuts, washers, & bolts)
Tools that may be required for installation: Cordless Drill, 3/8" drill bit, 1/2" wrench, and a screwdriver.
Light bar dimensions: 42" wide x 12.5" tall x 4" deep
Weight: 28 lbs
