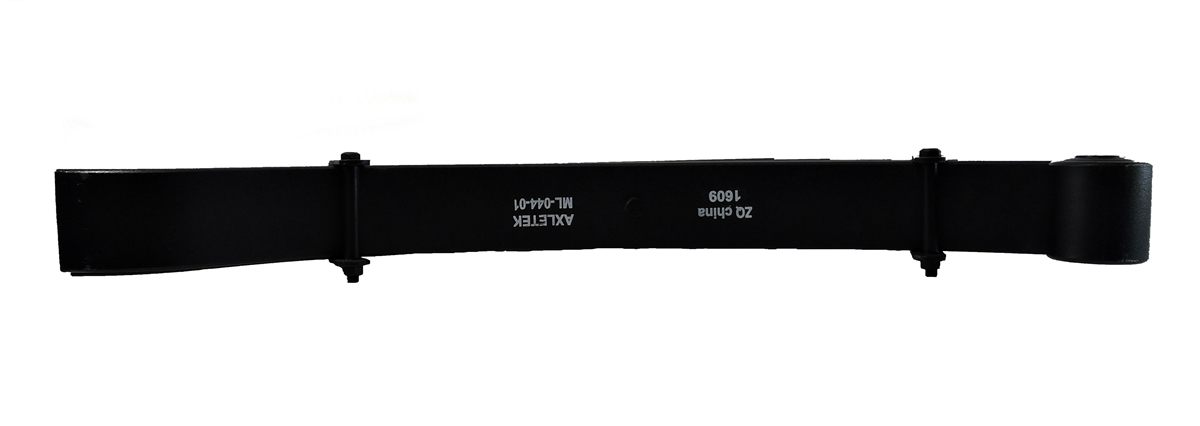

5 Leaf Slipper Spring for 10,000 lb Axles 30-1/2" Long
Dexter / Lippert 3" x 30-1/2" 5 leaf Slipper Spring for 10K



Alternative Views:
Our Price: $125.00

Stock Status:In Stock

Product Code: 72-43-1
Qty:

Description

5 leaf slipper spring with a 5,000 lb capacity for use on 10,000 lb trailer axles.
Multiple leaf spring will flex to absorb road shock and provide a smooth ride
Springs reduce wear and tear on your trailer
Found on most HD 10k Dexter / Lippert axles.
1" eye rubber bushing included with spring
Used on most Dexter HD 10K axles PJ trailers built in 2015 and newer.

SPECS
Single Spring Capacity: 5,000 lbs
Axle Capacity: 10,000 lbs
Thickness of Leaves: 3/8"
Number of Leaves: 5
Spring width: 3"
Spring length: 30-1/2"
Spring eye size: 1"
Manufacturer: AxleTek
Construction: Steel
Finish: Black Paint
Part number: ML-043-01 or ML-043-00
Crossover part numbers: 72-43-1, ML-043-01, 120094, UNA-268, SP-268275, 072-043-01, ML-043-00

Installation Instructions:
- Eye of spring will attach to front hanger mounted to the trailer frame or to the center of the equalizer.
- Slipper end of the spring will slid into the equalizer or the rear axle hanger.
- Suggested to insert new suspension bolts and tighten to the manufacturer's specs.
