Dexter E-Z Flex Suspension Kit 1-3/4" Wide Hanger Kit -33" Spacing up to 6,000 lbs.
Dexter HD E-Z Flex Suspension Kit 1-3/4" Wide Hanger Kit -33" Spacing up to 6,000 lbs.



Alternative Views:
Our Price: $380.00


Product Code: K71-652-06
Qty:

Description

Dexter HD E-Z Flex Suspension Kit 1-3/4" Wide Hanger Kit -33" Spacing up to 6,000 lbs.
-This complete hanger suspension kit included everything you need for tandem axle install
-Fits 1-3/4" wide double leaf springs and included greaseable equalizers and hardware
-Rated from 2,000 lb. to 6,000 lb. Axles Dexter or Lippert Axles
-Designed to improve ride performance by absorbing road shock before it affects your cargo
-Stylish design with durable red powder coat
-Kit can be used as a retrofit kit or can be factory installed by manufacturer
-Paired with our heavy-duty shackle links this suspension will outperform other products
Kit Contents:

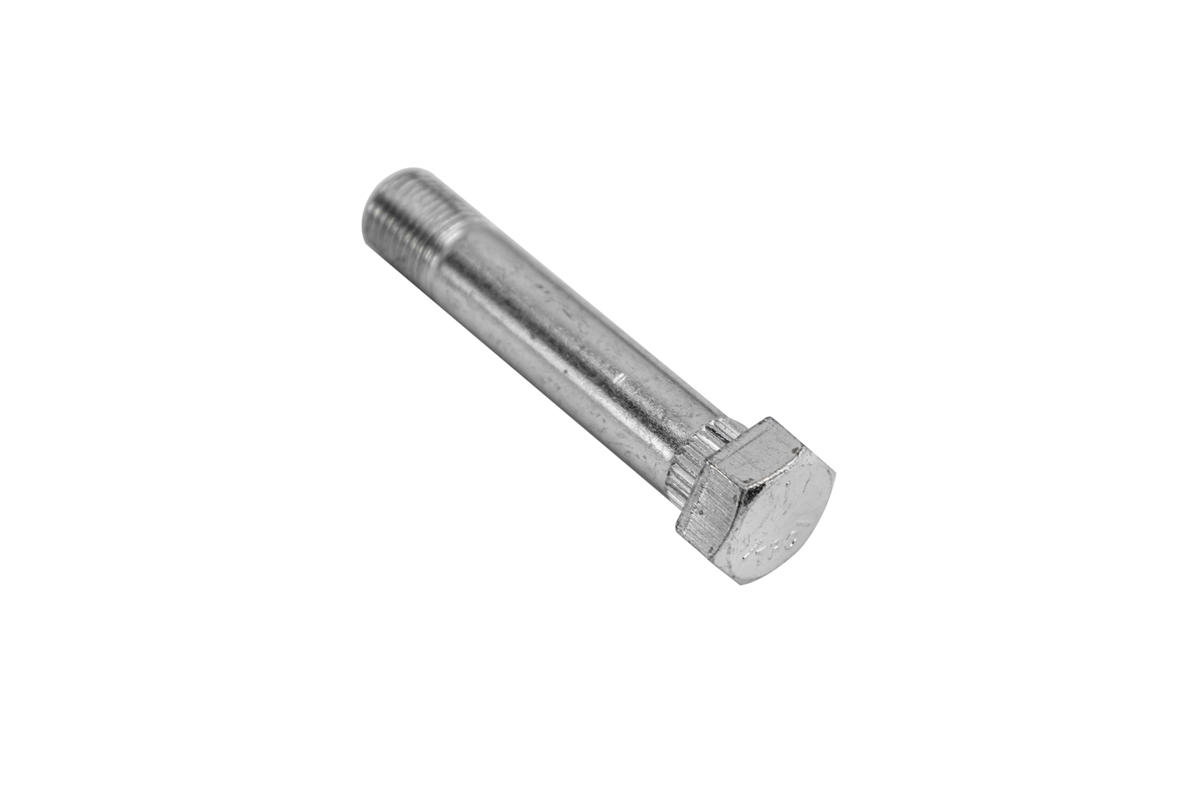

(4) 007-187-01 9/16" Shoulder Bolt -Zinc

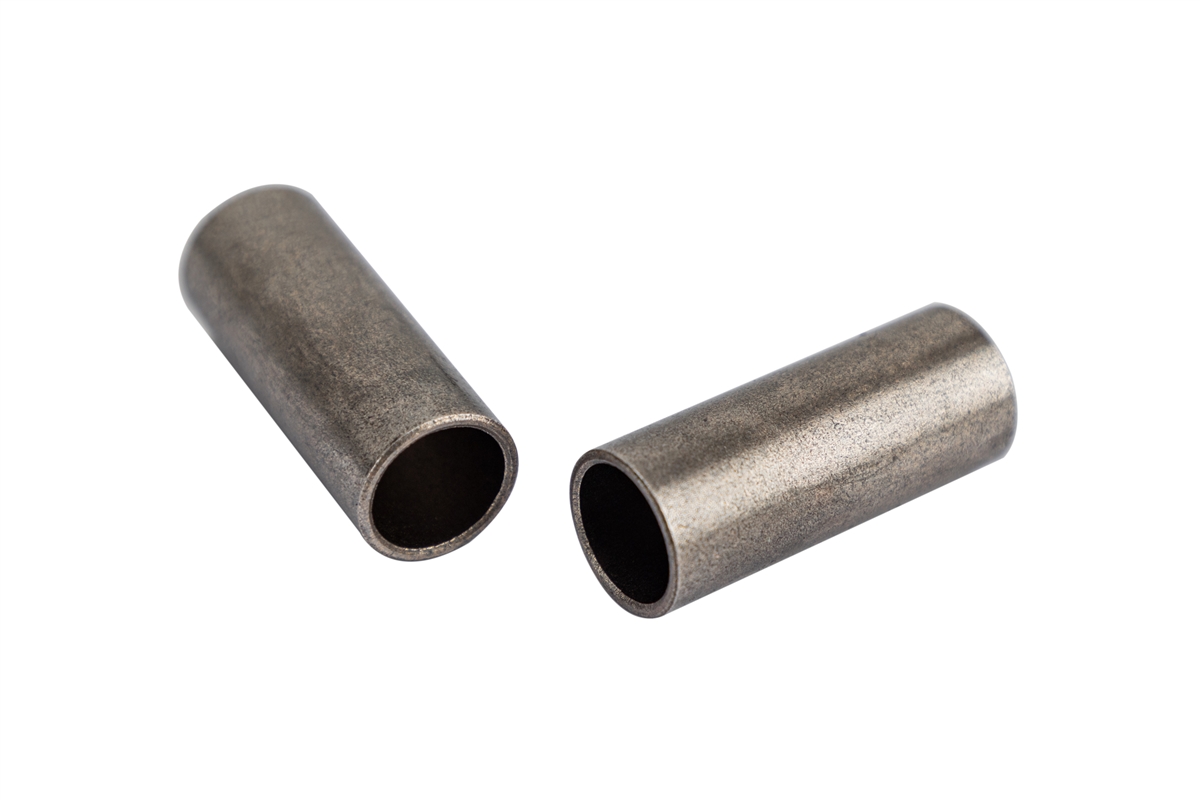

(8) 014-077-00 1.74" Brass bushings
(4) 018-026-05 Shankle link assembly -Zinc
(2) 006-007-01 9/16" Hex locking nut

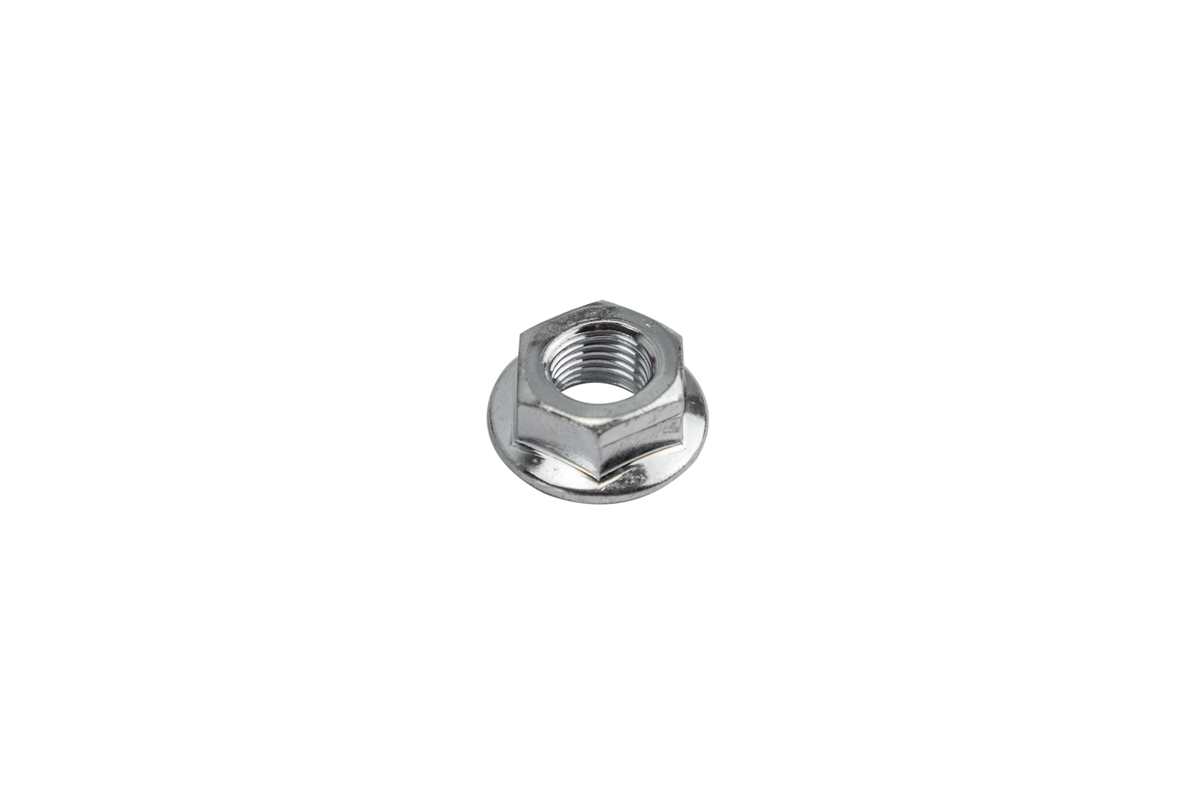

(12) 006-092-01 7/16" Flanged nut
(2) 007-003-01 9/16" Press in Bolts -Zinc

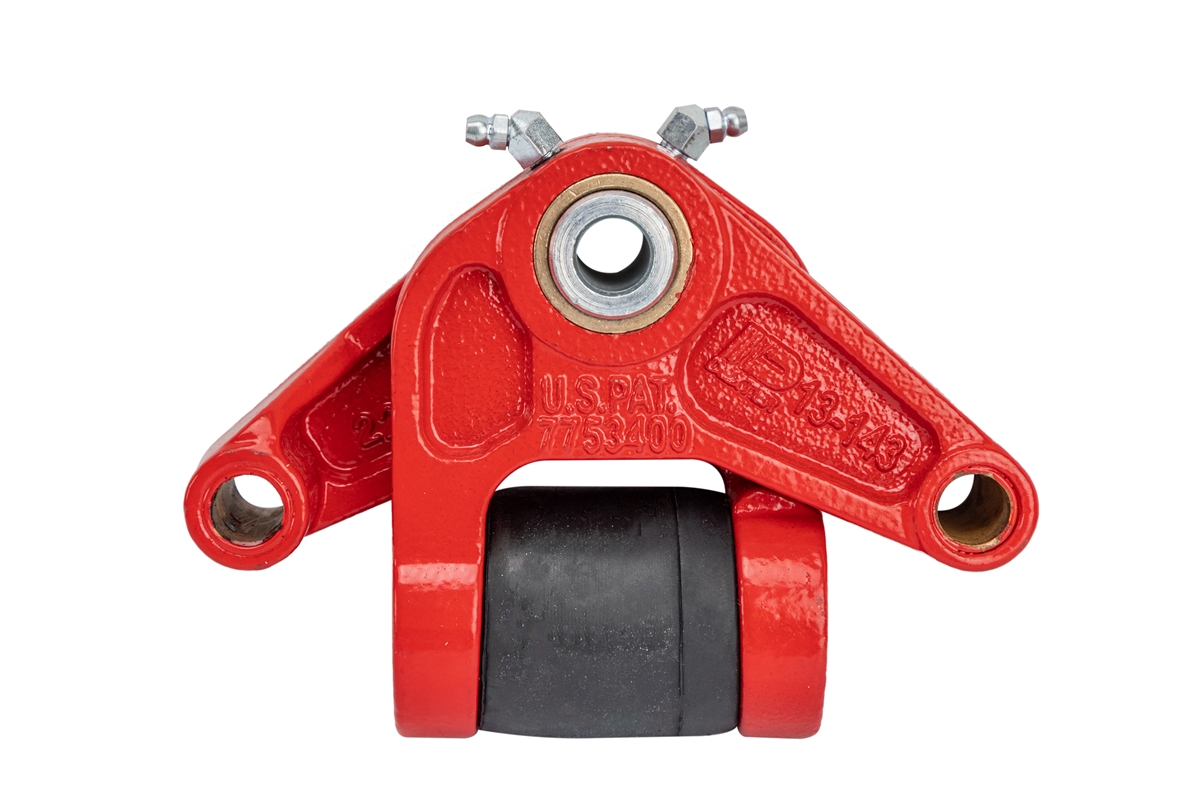

(2) 013-143-06 5.70" E-Z Flex Equalizer -Red
(4) 018-024-01 Shackle Links -Zinc

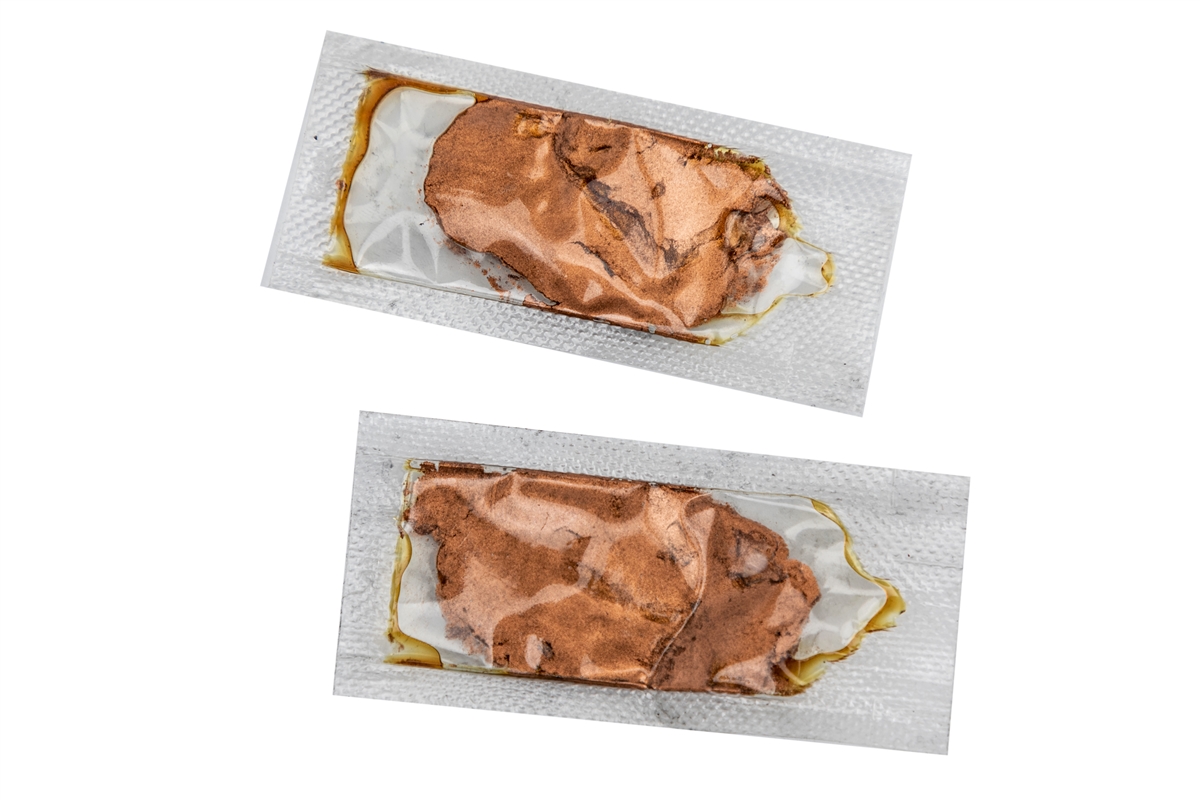

(2) 088-008-00 Grease Packs
(1) 059-A45-00 Instruction Sheet

Main Specs:
Construction: Steel
Finish : Zinc
Axle Sizes : 2,000 lb.- 6,000 lb. axles
Axle Spacing : 33"
Our part number:K71-652-06
Warranty : 5 year limited warranty
Brand :Dexter Axle

Installation Instructions
