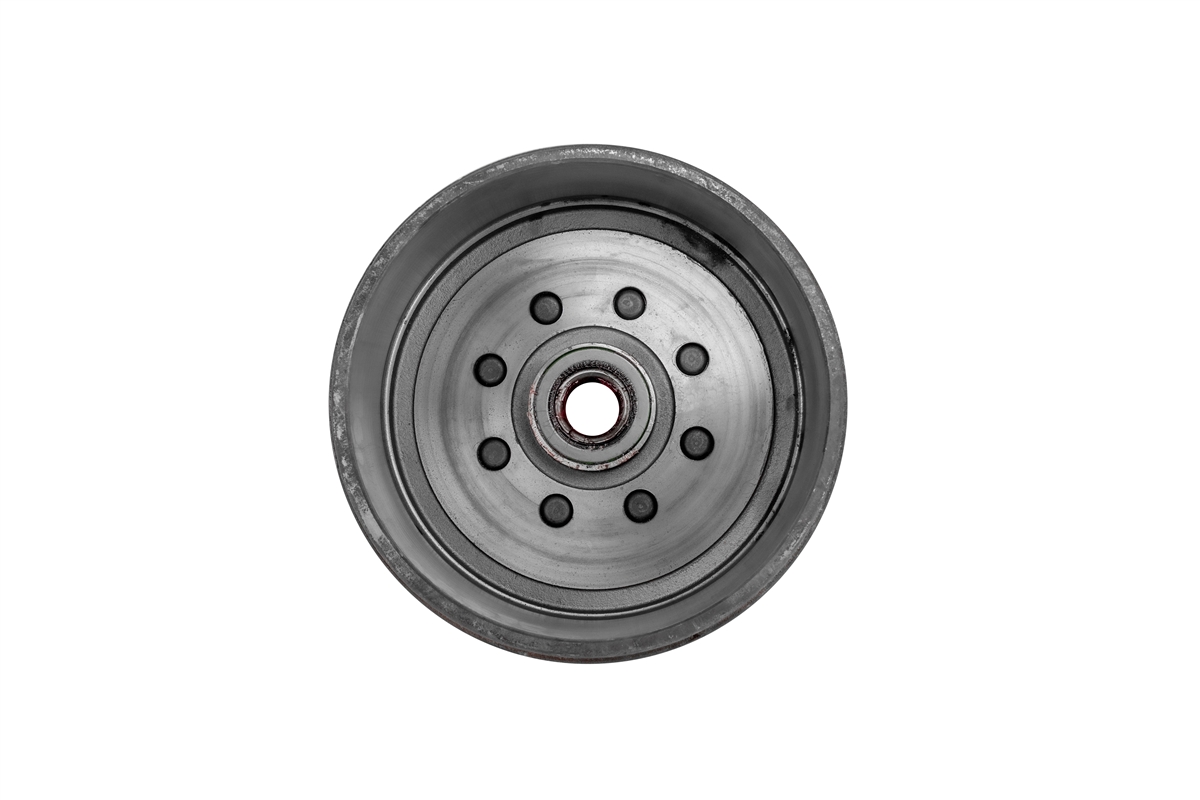

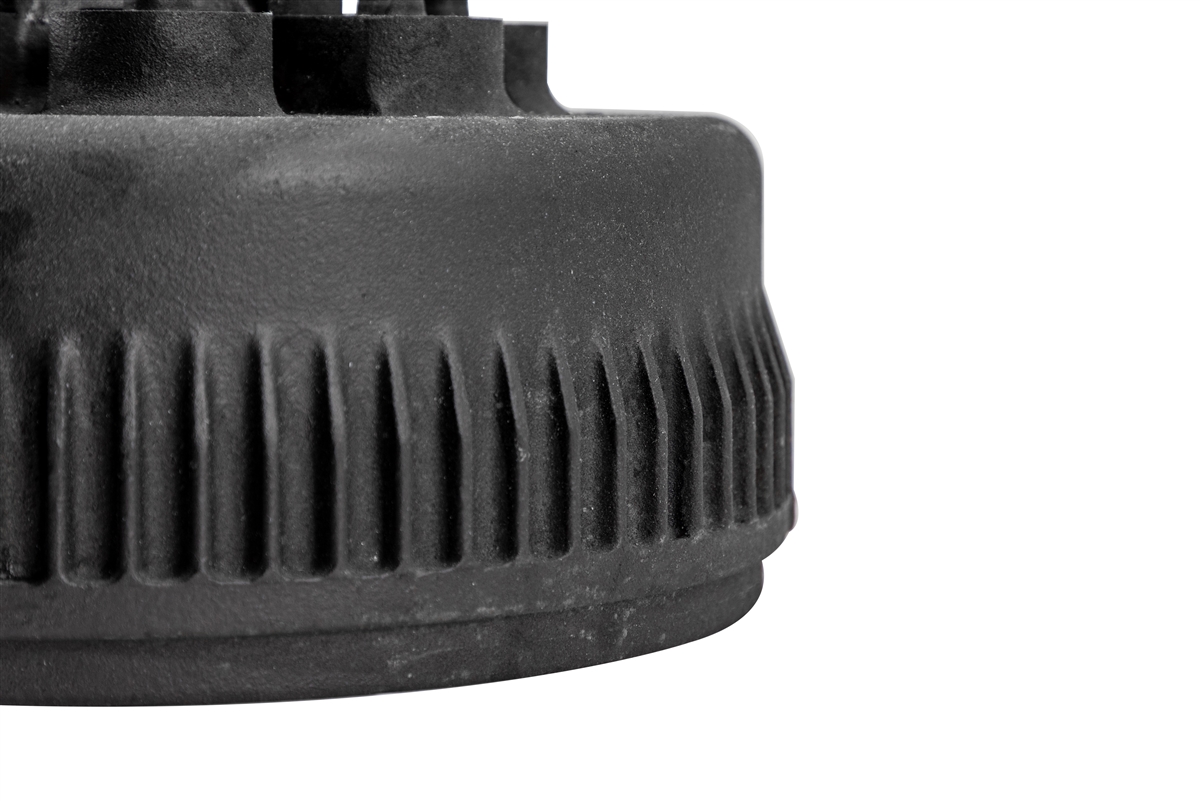

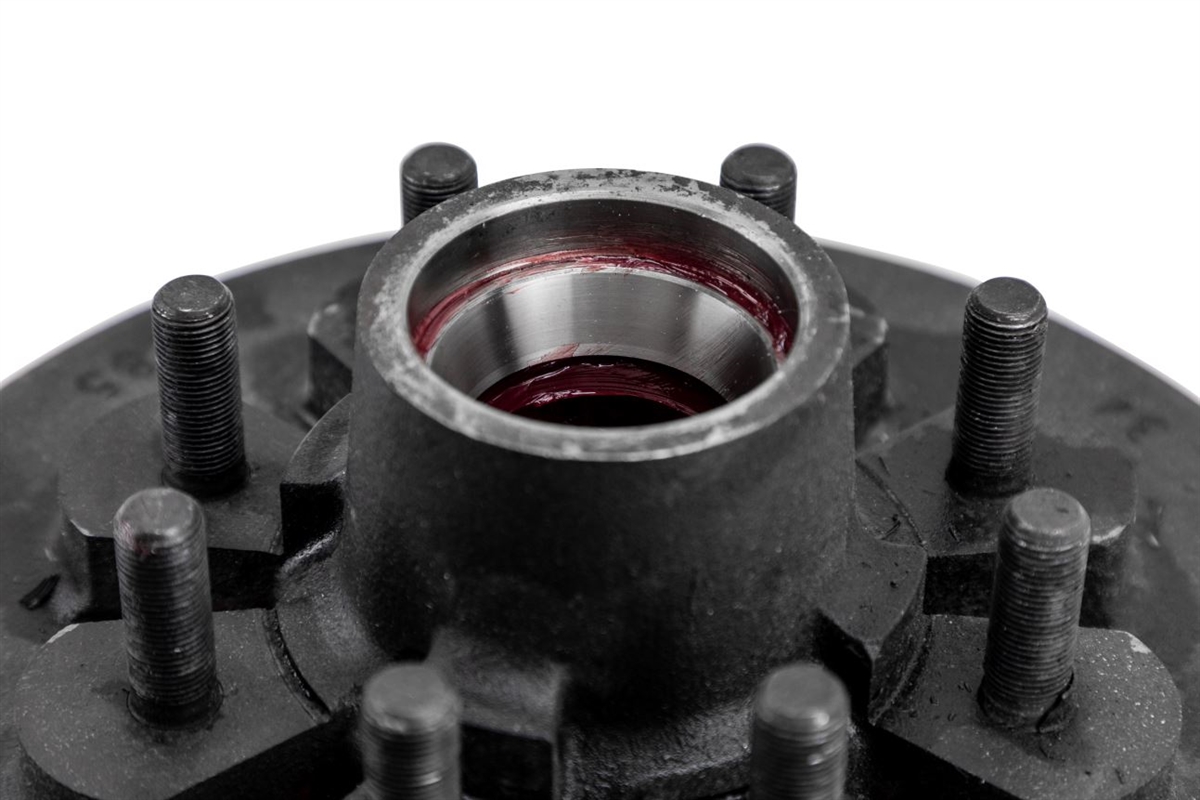

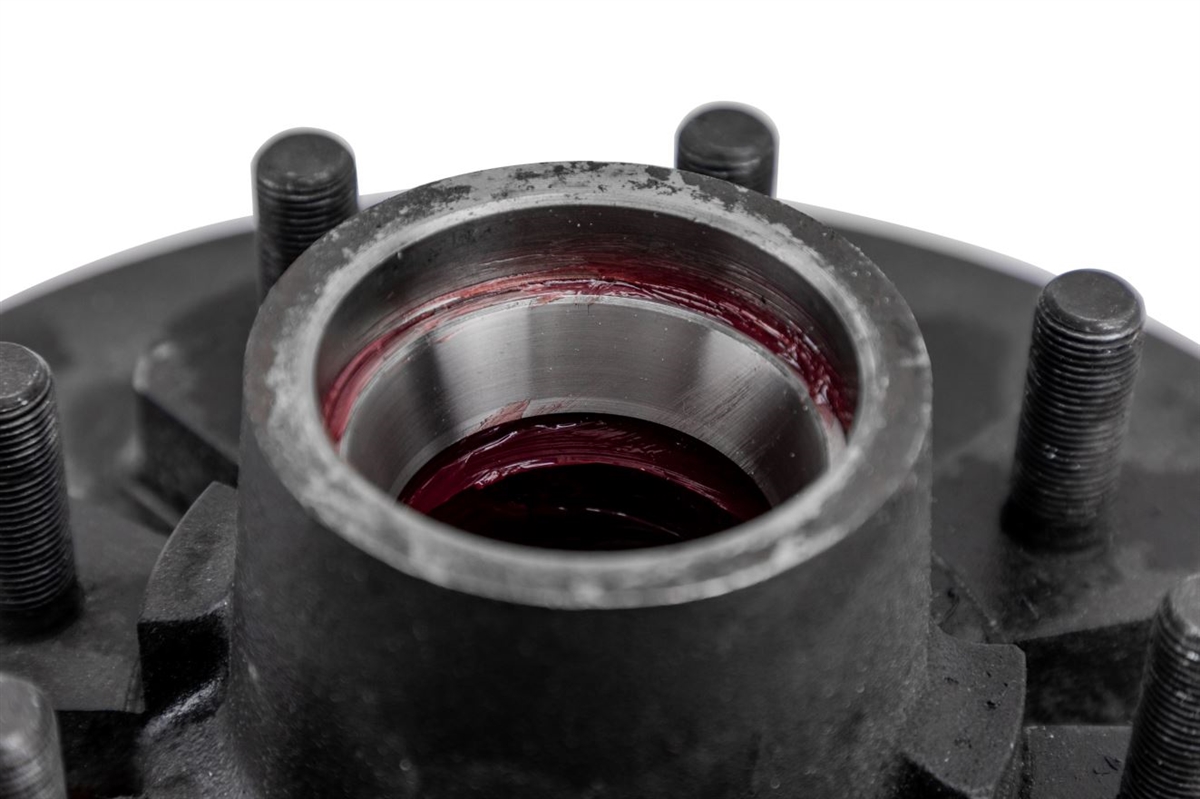

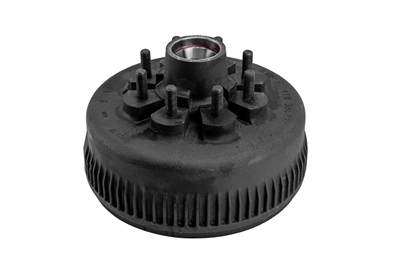

Dexter 8,000 lb. Brake Hub & Drum w/ 5/8" Studs -Grease
Dexter 8,000 lb. Brake Hub & Drum w/ 5/8" Studs -Grease



Alternative Views:
Our Price: $425.00

Stock Status:(In Stock)

Product Code: 008-285-08
Qty:

Description

Official Dexter Trailer Axle Hub / Drum for 8,000 lb. Dexter axles with 5/8" Studs and Grease
Comes with studs, races, installed in the hub.
Drum works with both electric drum brakes, and hydraulic drum brakes.
Designed for grease lubrication only, for oil applications use part # 008-285-10
Use with 17.5" single tires and wheels, for 16" use Drum # 008-285-11 or #008-285-09
Made in USA

Internal Specs:
-Bearings (sold separately)
  • Inner bearing: 25580 (1.750" Inner diameter)
  • Outer Bearing: 02475 (1.250" Inner diameter)
-Races (included)
  • Inner Race: 25520
  • Outer Race: 02420
- Grease Seal (Sold Separately ;#10-36 or 010-036-00
  • Inner Diameter: 2.250"
  • Outer Diameter:3.376"

Main Specs:
Construction: Cast Iron
Finish : Black Paint
Drum Dimensions: 12-1/4" diameter x 3-3/8" Wide
Hub Pilot: 4.75"
Bolt Pattern: 8 on 6-1/2"
Stud size: 5/8"
Capacity: 4,000 lbs

To buy this drum / hub complete with Bearings, oil seal, oil cap etc, #K08-285-97
