Bulldog 3,000 lb. ATV/UTV Winch with Winch plate /Fairlead
Bulldog 3,000 lb. ATV/UTV Winch with Winch plate /Fairlead



Alternative Views:
Our Price: $210.00


Product Code: 15002
Qty:

Description

Bulldog 3,000 lb. ATV/UTV Winch with Winch plate /Fairlead
-Popular size for ATV's and side by sides
-Includes handle bar rocker switches
-Includes basic L-mounting channel

Specs/Part Numbers
  • Rated Single Line Pull : 3,000 lbs.
  • Hand Held Remote : handlebar w/ rocker switch
  • Rope Size : 3/16" x 40ft ( 5 mm x 12.2M)
  • Mounting Bolt Pattern : 2 Bolt 3.15" apart
  • Motor : 1.2 HP permanent magnet
  • Brake: Dynamic
  • Gear Ratio: 153:1
  • Part number : 15002
  • Overall Dimension 11.8" x 4.3" x 4.1"
  • Warranty: 2 Limited Warranty

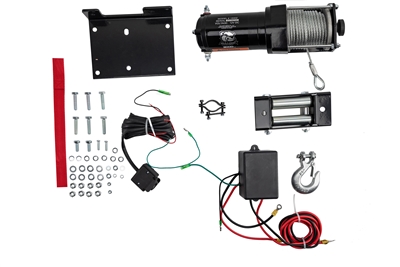

Box Includes:
  • Main Bulldog 3,000 lb. Winch
  • Roller Fairlead and mounting channel
  • Detachable control box
  • Wire and switch
  • Wire rope w/ safety hook
  • Handsaver strap
  • 6 gauge battery leads
  • Mounting hardware
  • Installation manual
