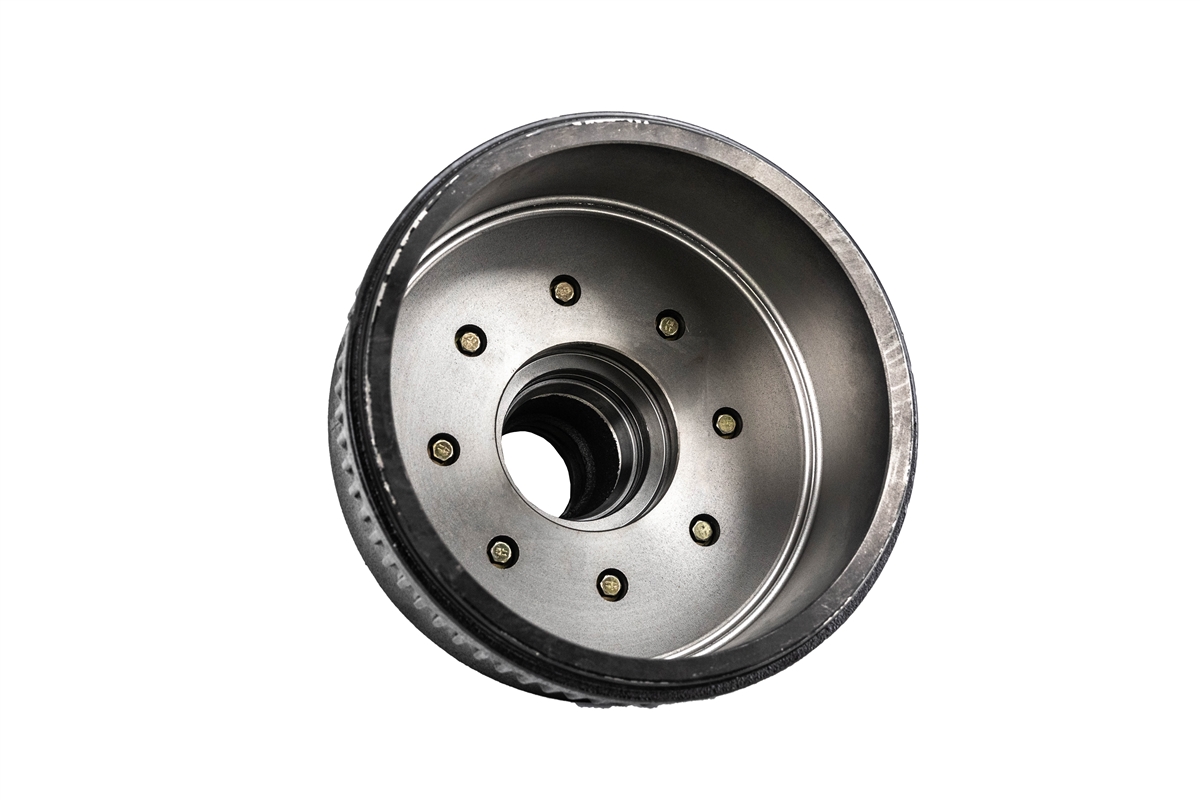

Axle Tek/Dexter 10,000 lb. GD Hub/Drum Combo -12-1/4" x 3-3/8"
Axle Tek/Dexter 10,000 lb. GD Hub/Drum Combo -12-1/4" x 3-3/8"



Alternative Views:
Our Price: $259.99

Stock Status:(In Stock)

Product Code: BD-86510-16
Qty:

Description

Axle Tek. Trailer Axle Hub/ Drum only for older 10,000 lb. Dexter or Lippert General Duty axles.
Drum works with both electric drum brakes, and hydraulic drum brakes with/out ABS
Heavy duty cast iron construction w/ outer paint finish
Comes complete with races prepressed in
Works on Dexter 10,000 lb.General Duty axles built before July 2009
Works on Lippert 10,000 lb.General Duty axles built before August 2020

Bearing and Races Specs:
Inner Bearing : 387A -(not included)
Outer Bearing : 25580 -(not included)

Inner Race : 382A -included
Outer Race : 25520 -included

Oil Seal :10-51 or 10-051-00 (not included)
Main Specs:

Drum Dimensions: 12-1/4" diameter x 3-3/8" Wide
Hub Pilot: 4.75"
Bolt Pattern: 8 on 6-1/2"
Stud Size :5/8"
Capacity: 5,000 lbs.
Manufacturer: Axle Teknology
Part number: BD-86510-16
Dexter Crossover Part Numbers:K08-288-90, DX Hub 008-288-3UC1,DX Drum 009-044-01,
Lippert Crossover Part Numbers : 183662 ,Hub 183168,Drum 183537,




Axle Teknology Quality Explained :

These Hub and Drum have meet and exceeded the requirements of the Canadian Standards Association (CSA) CSA certification creates a standard to ensure a safe and high quality product. This drum has also been tested by a third party Company (QAI) for braking performance in a complete automotive / trailer setup and under real-world conditions. This drum assembly has passed and held up under the testing .This was done for your peace of mind and to help you to move with confidence.
