PJ Trailers Monster Ramps Double Hinge Assembly
PJ Trailers Monster Ramps Double Hinge Assembly



Alternative Views:
Our Price: $188.00

Stock Status:In Stock

Product Code: 160069
Qty:

Description

PJ Trailers Monster Ramps Double Hinge Assembly
- A HD powder coat keeps rust at bay
- (3) - 1-1/2" ID ramp rod supports come standard
- (1) - 1-1/2" x43" removable ramprod which attaches to the ramp (NOT INCLUDED)
Note: Springs and 43" ramprod are NOT included each hinge assembly The optional springs needed are listed below per assembly.
(1) #180396 PJ LH hook ,spring for 44" wide monster ramps -Outboard lift
(1) #180397 PJ RH hook ,spring for 44" wide monster ramps -Outboard lift
(1 or 2) #180398 PJ LH return spring for 44" monster ramps-(fold)
(1 or 2) #180399 PJ RH return spring for 44" monster ramps-(fold)
A total of 3 fold springs are required . LH (driver's ) Ramp takes 2 -180398 and 1 -180399
and RH (passenger's) ramp takes 2 -180399 and 1 -180398
(1 or 2) #180066 1.5" ramprod
Main Specs:
Placement : Left Hand or Right Hand
Construction : Steel
Color/Finish : Black/Powder-coat
Quantity : 1
Rating: 12,000 lbs.
Part numbers : 160069

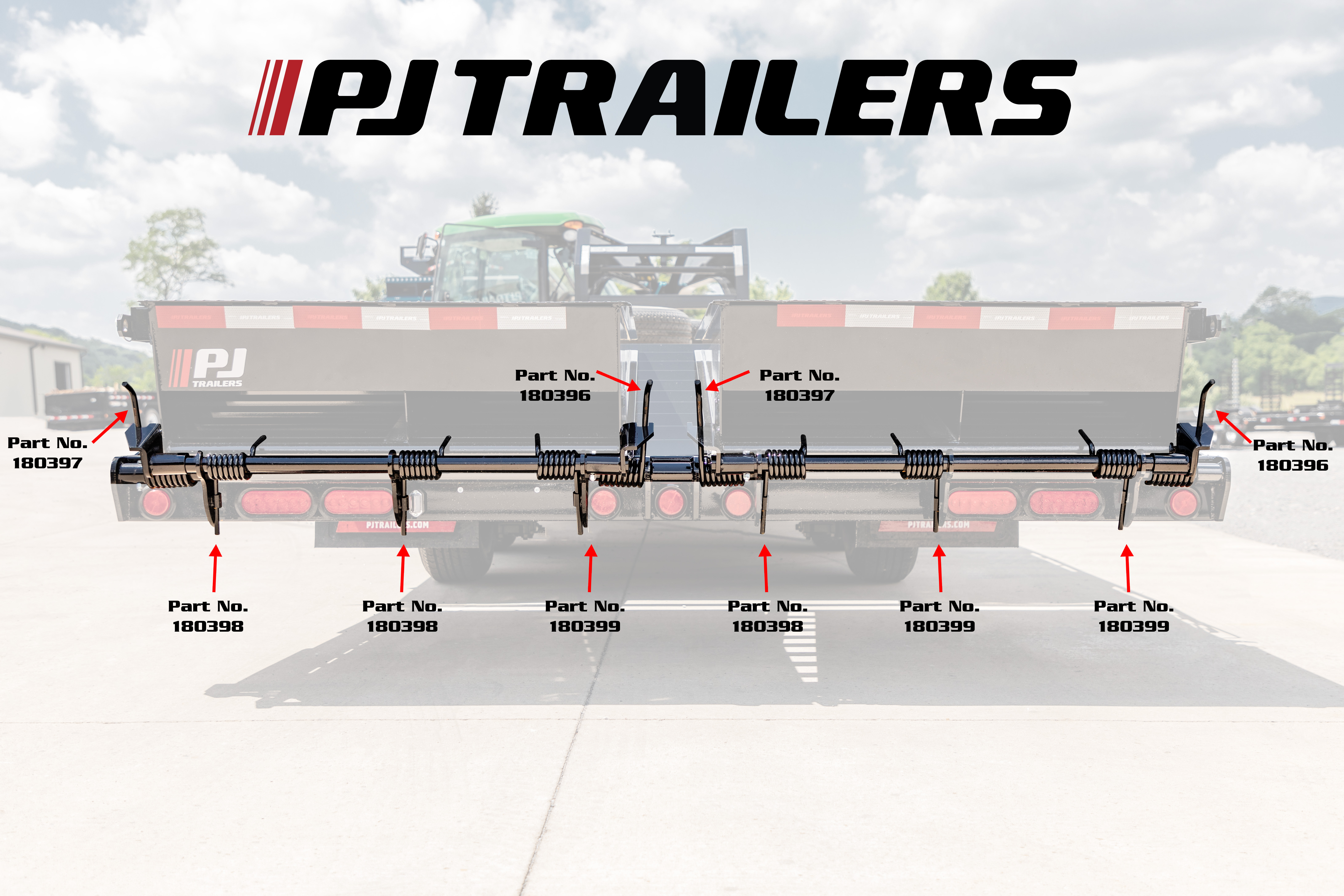

Spring Reference Chart below
