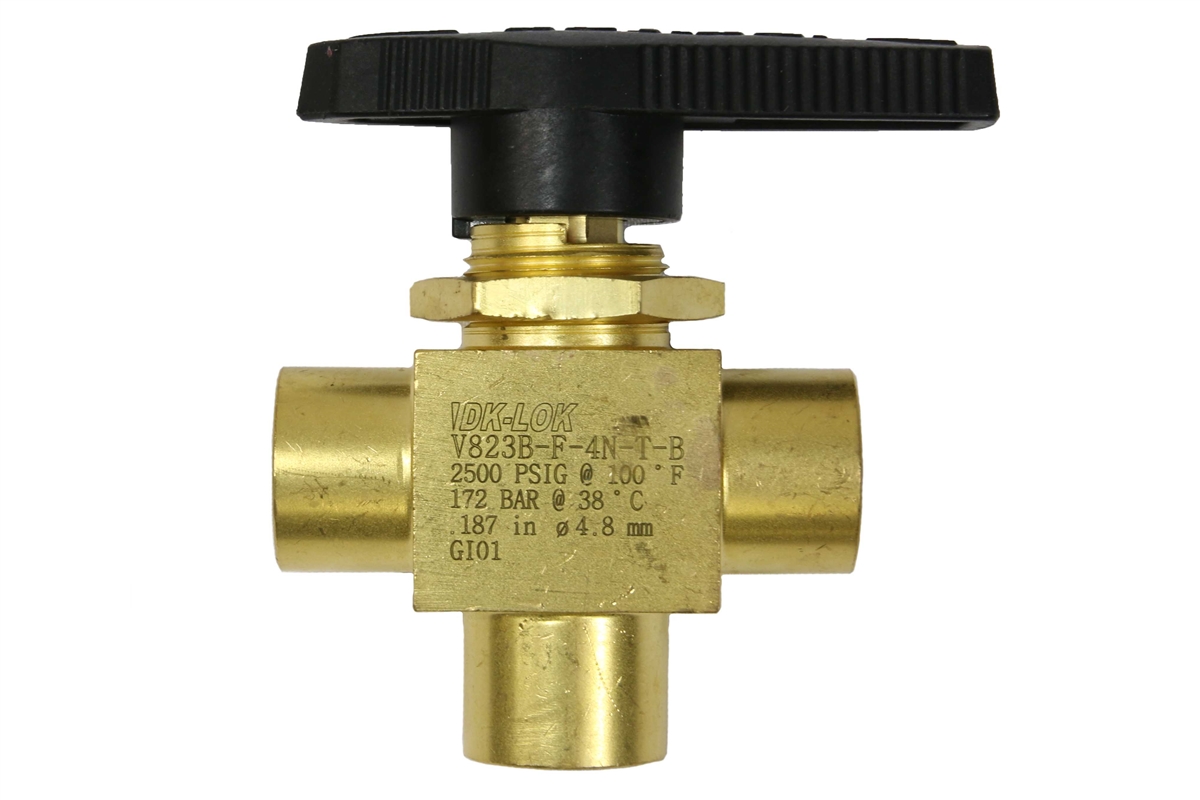

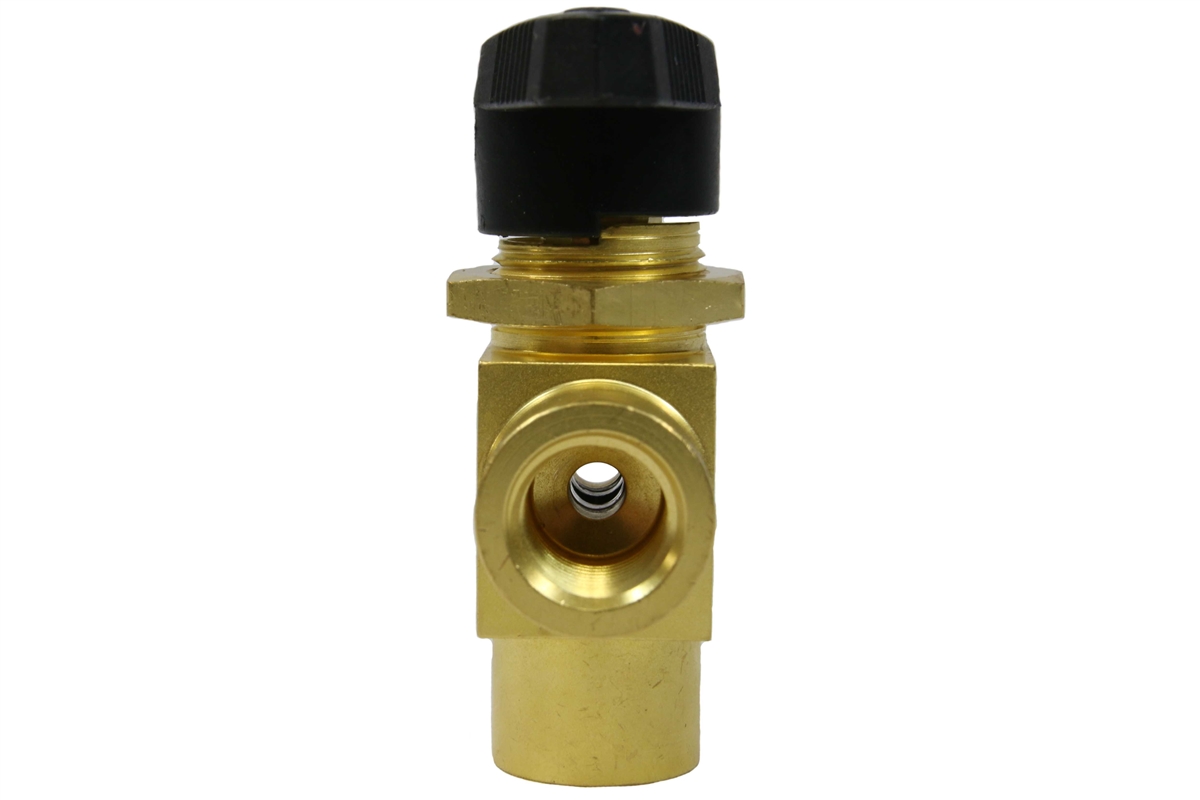

Replacement 3 way diverter valve used on PJ tilt trailers
Large handle and single mounting hole makes for easy installation and simple operation
- Manufacturer: DK-LOK
- Manufacturer's Part Number : V823B-F-4N-T-B
- Construction: Brass
- Pressure rating :2500 PSIG
- Bar: 172 @ 38'C
- Port size : 1/4" Female NPT for all three ports
- Used on PJ Trailer cushion tilt trailers with 3-way diverter ball valve (Note may not fit every year model)
- Used on PJ Trailer Models: T1,T5,T6,T7,TJ,TK,
V82 Ball Valve Spec Sheet.PDF
|
|
|
Diverter Valve
