14 Gauge 7-Wire Jacketed Trailer Cable -Per ft.
14 Gauge 7-Wire Jacketed Trailer Cable -Per ft.



Alternative Views:
Our Price: $3.37

Stock Status:(In Stock)

Product Code: 147C500
Qty:

Description

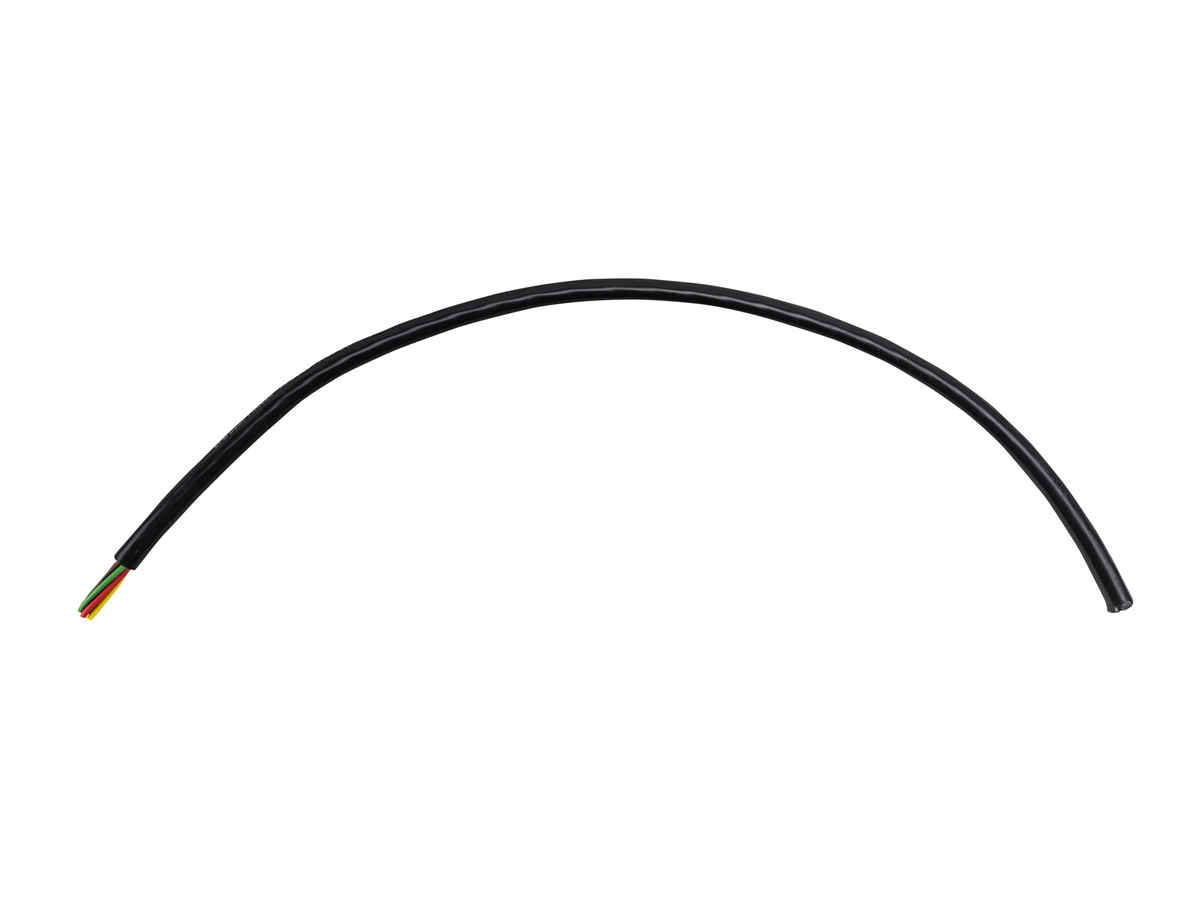

Jacketed Cable 14 gauge 7-wire for trailer lights and brakes
- Heavy 14 Gauge stranded wire is a suggested choice for electric trailer lights and the PVC jacket will provide years of protection from salt and corrosion.
- Meets SAE J1128 specifications for 50 volts or less
- Jacketed wire is made four insulated wire, bundled and covered with a high quality PVC jacket

Wire Colors :
White: -Ground
Black : + Positive
Red : Backup lights / auxiliary
Blue : Brakes
Brown :Tail lights
Yellow: Left Turn /Brake
Green : Right Turn /Brake

Main Features:
Wire length :12" (Sold per foot)
Gauge: 14
Number of wires : 7
Outside Diameter : .500"
Type: Jacketed
Crossable Part Numbers: 146C500,04908,04909,14873
